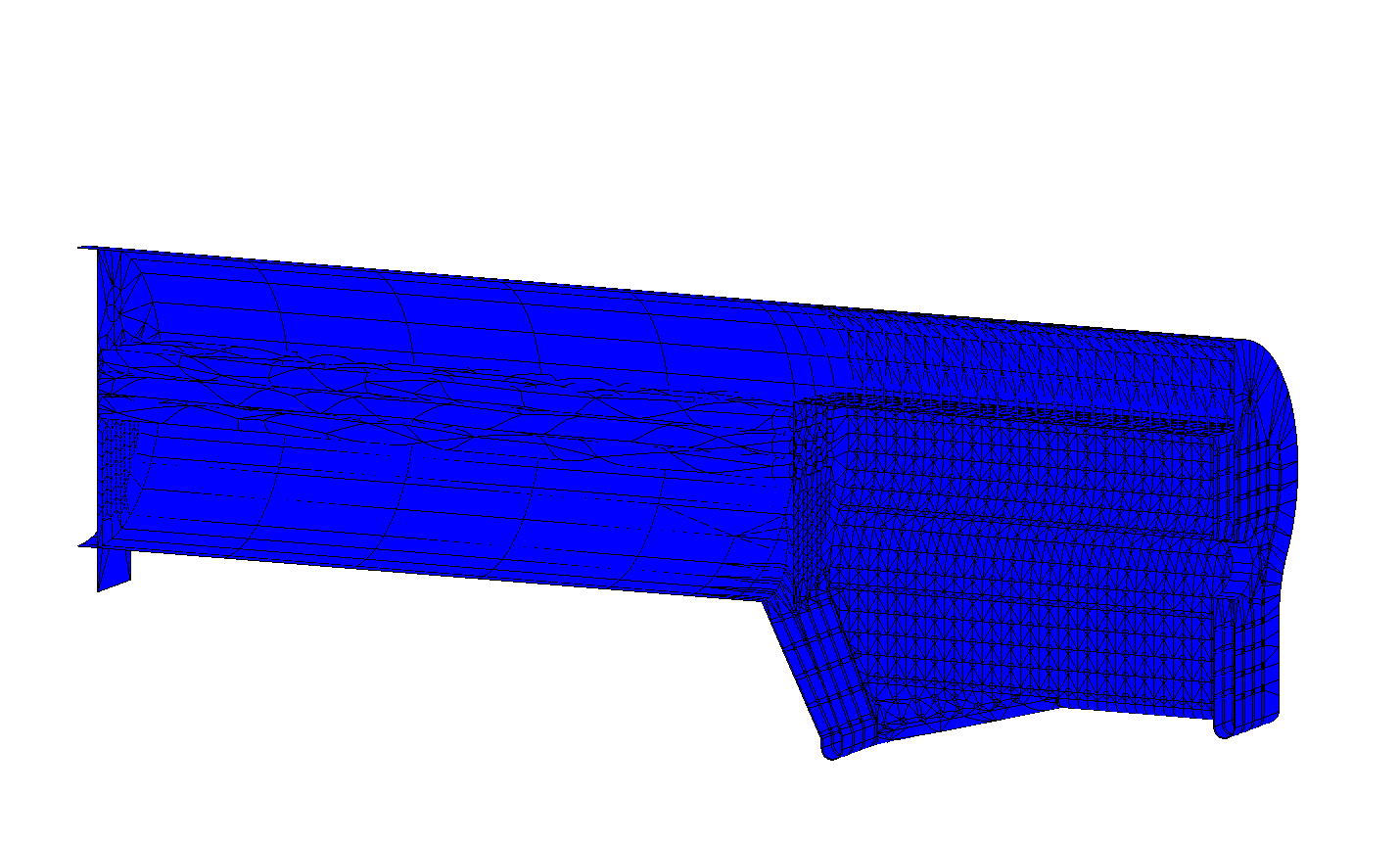

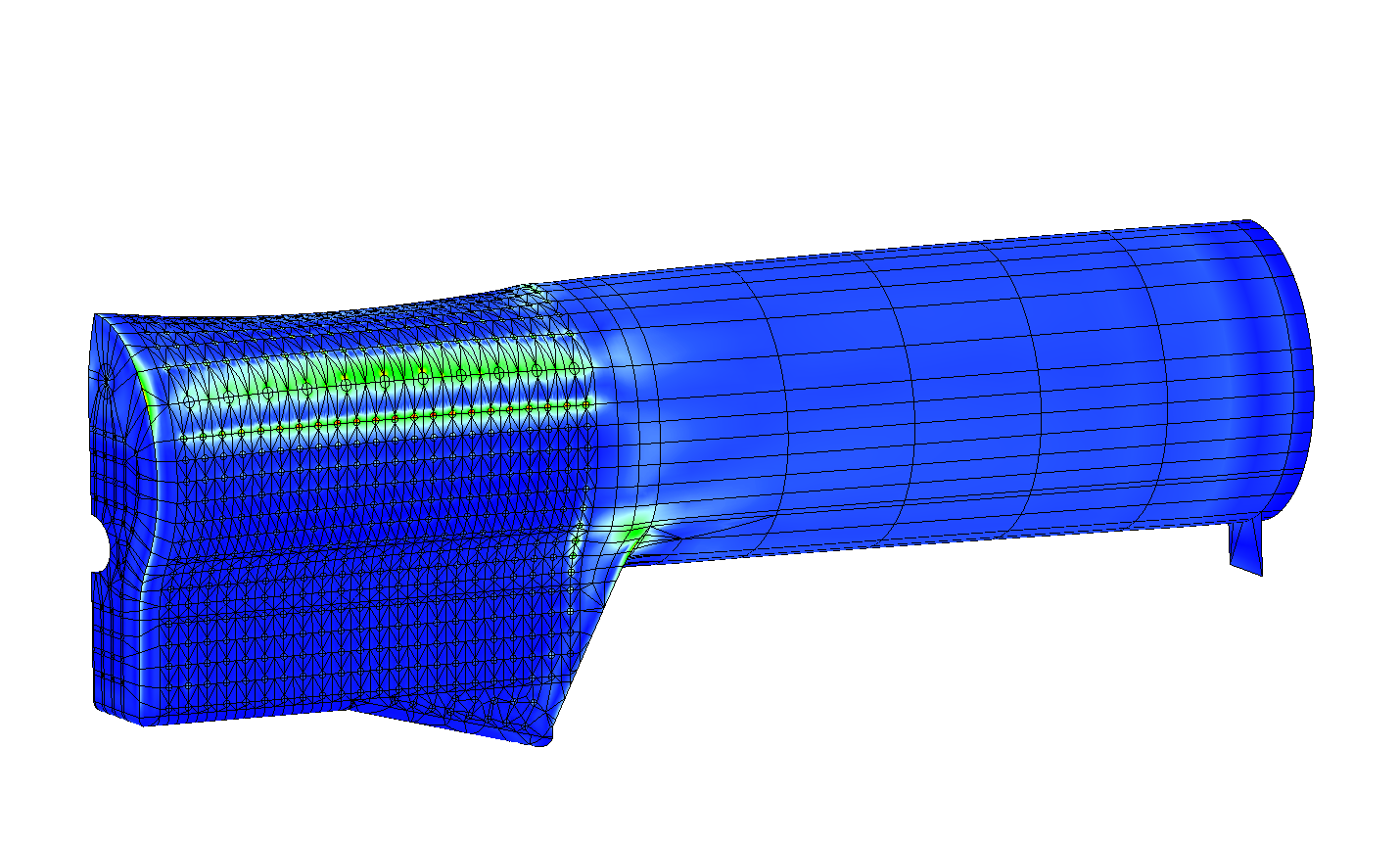

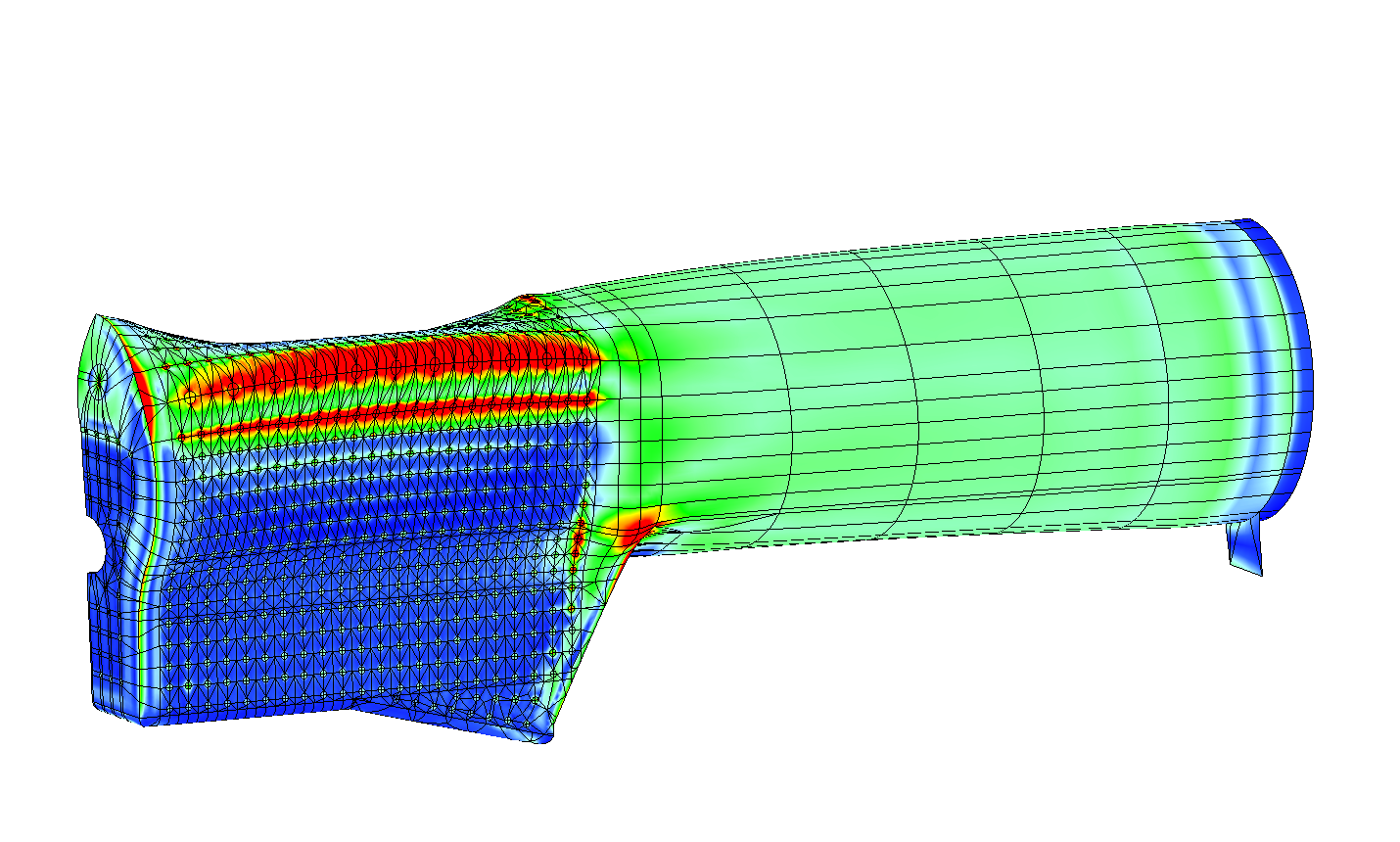

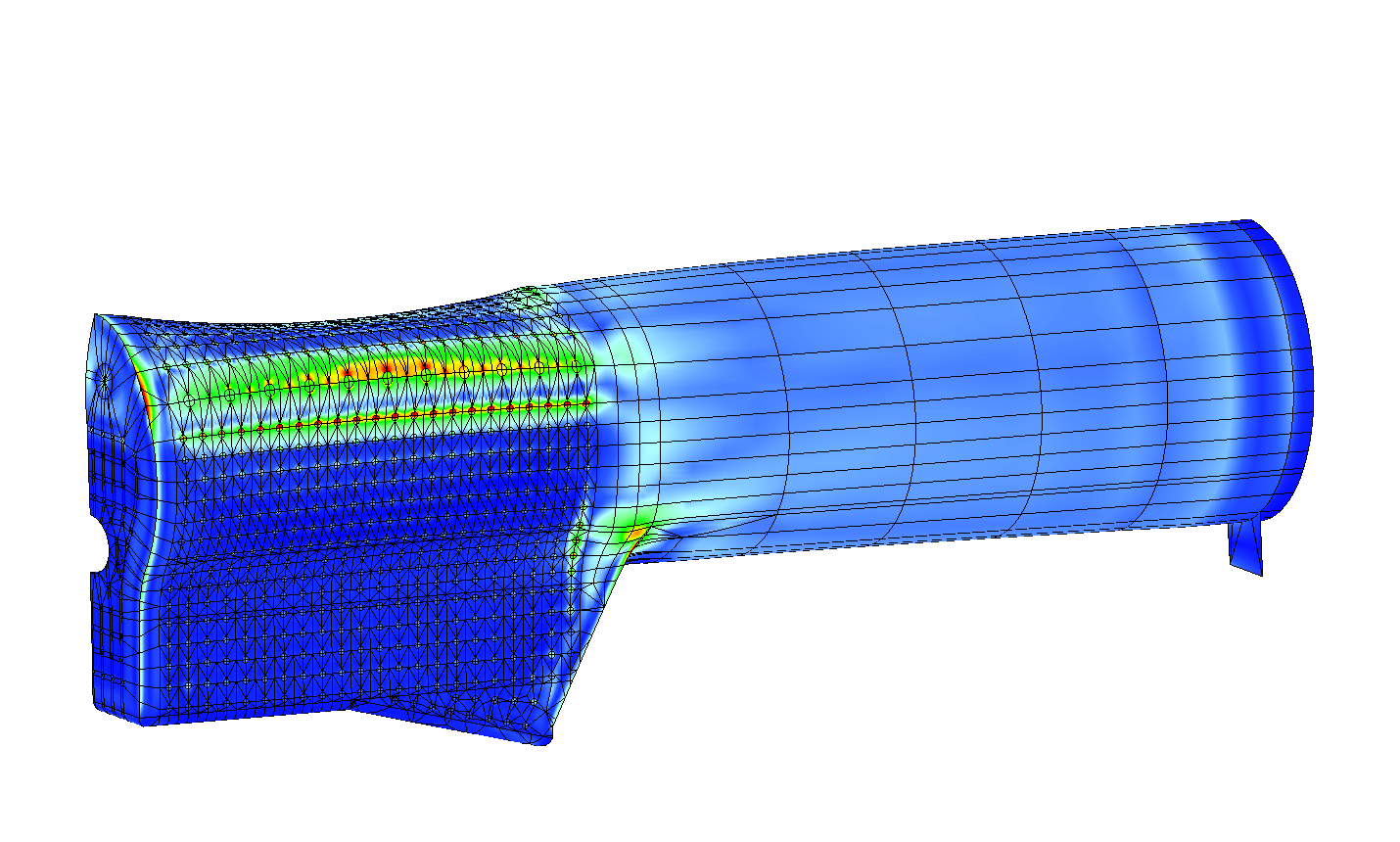

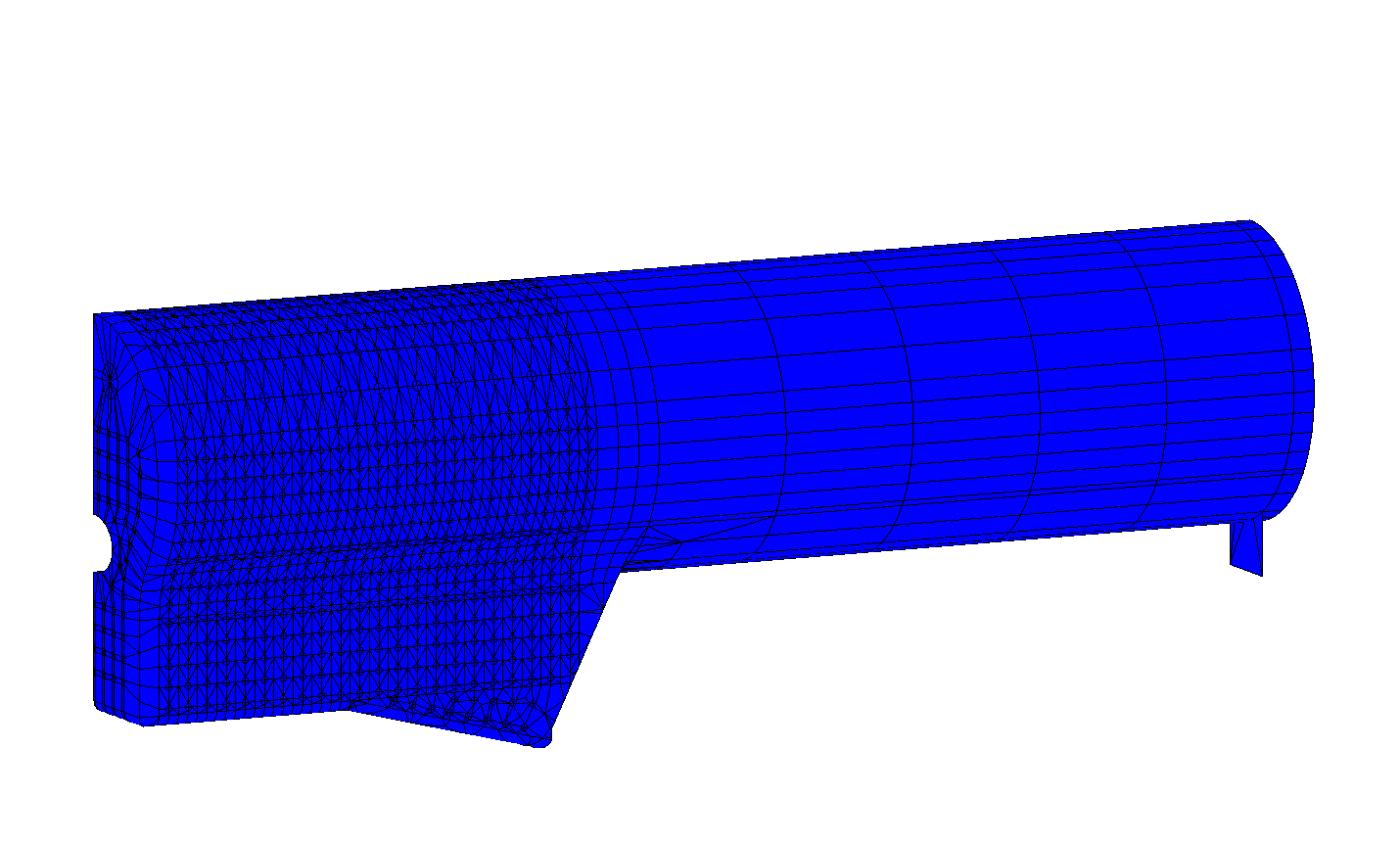

Model of welded locomotive boiler without a row of horizontal stays above the firebox. Such stays were subsequently added as a modification to the boiler prototype design which showed wrapper distortion and stay failure in adjacent areas.
To see the model with the row of stays please click here. This will open in a new browser window

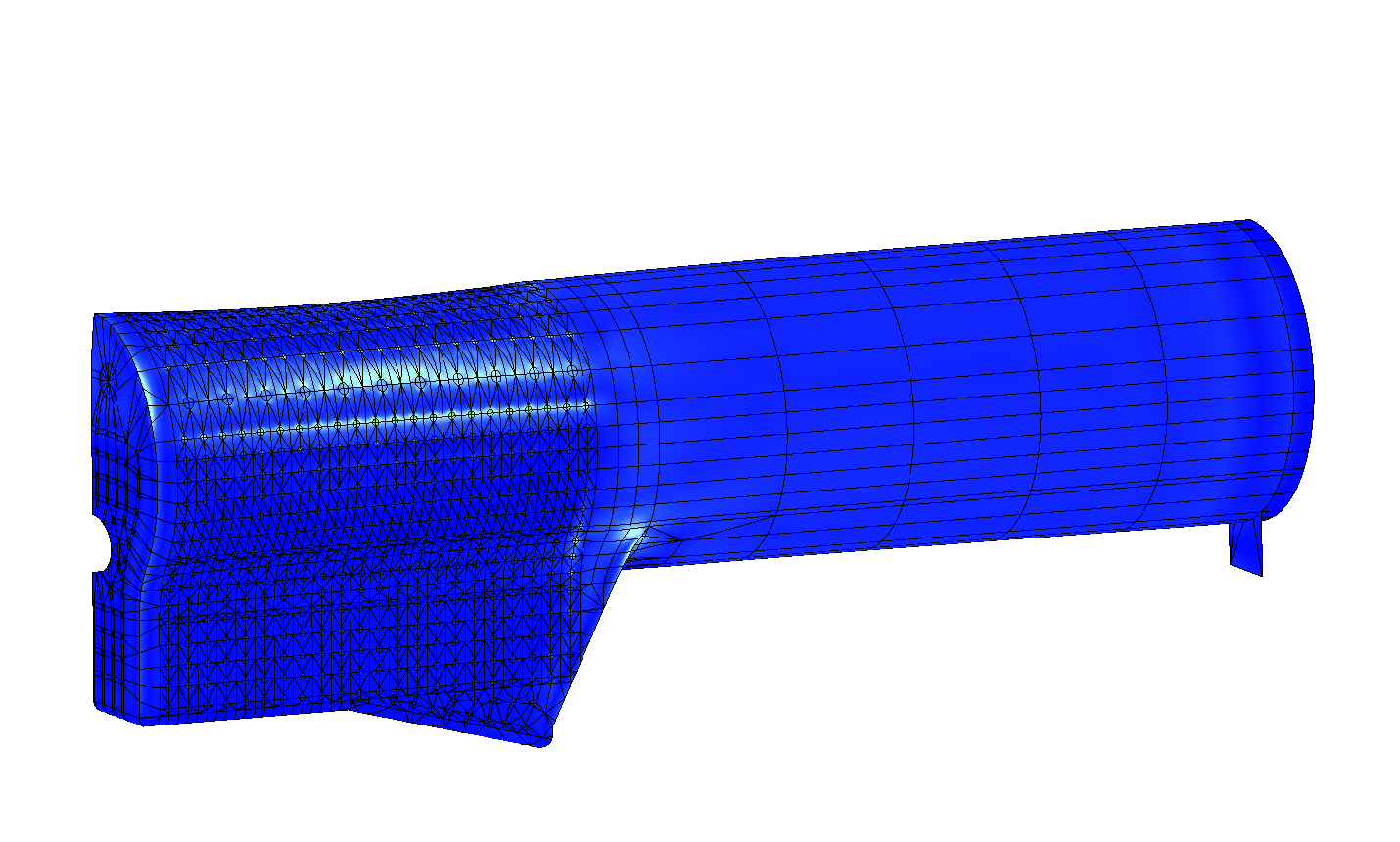

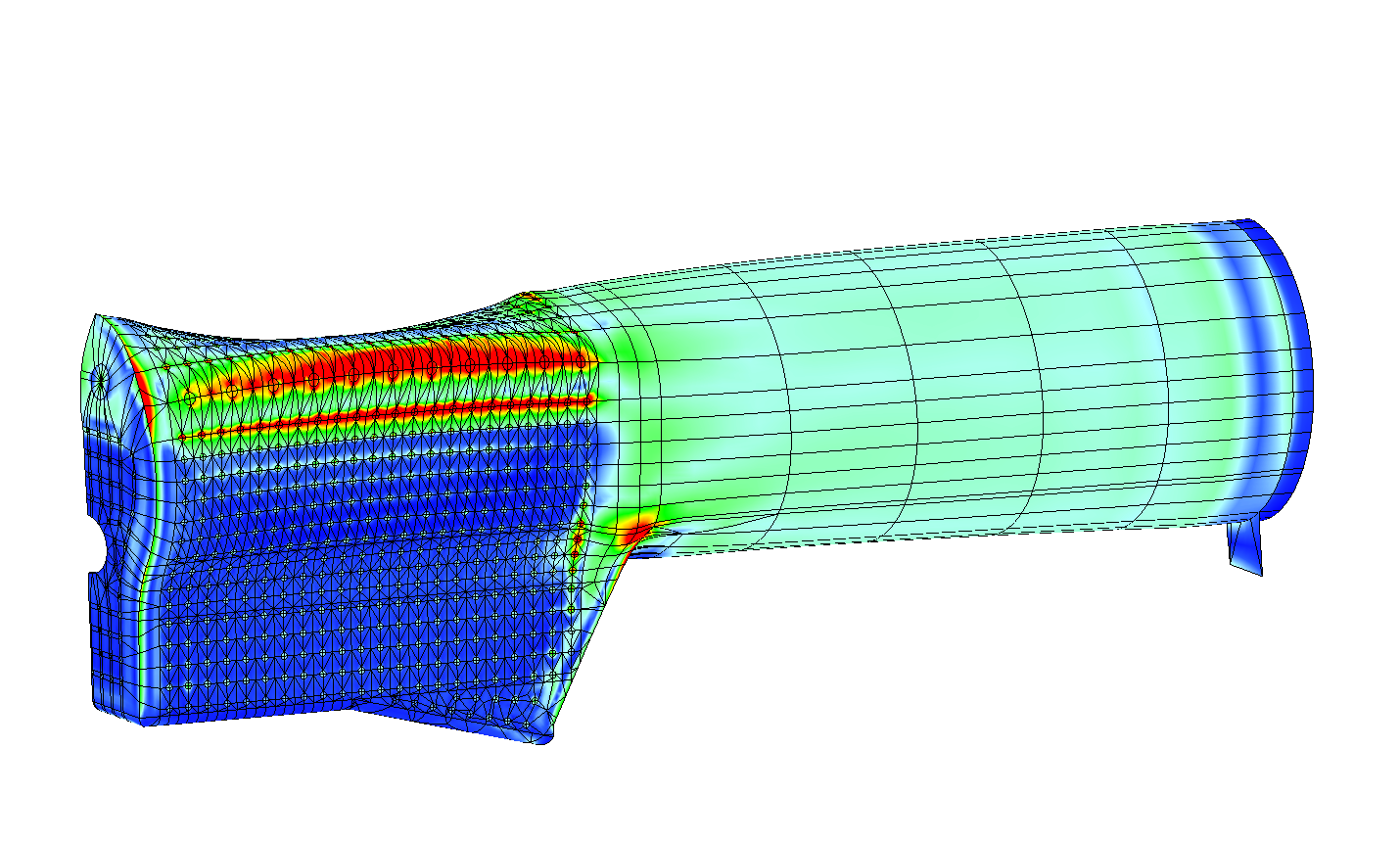

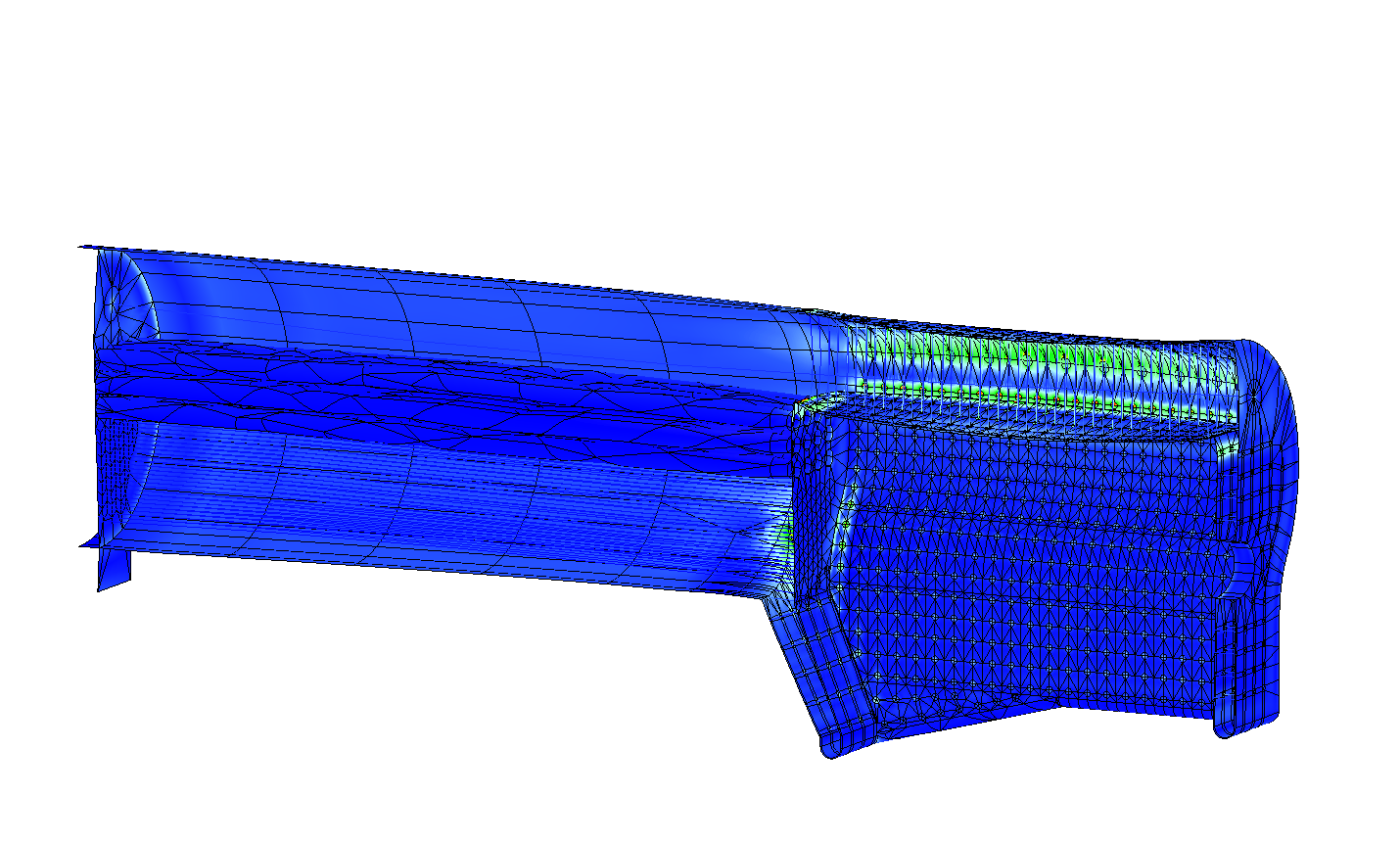

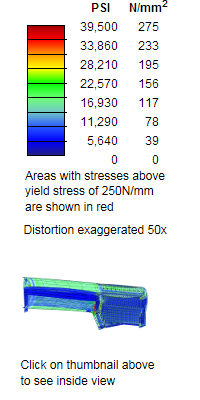

Please click on the main image to start animation. clicking on the moving image will stop the animation. Clicking on the smaller boiler image to the right swaps viewpoint.

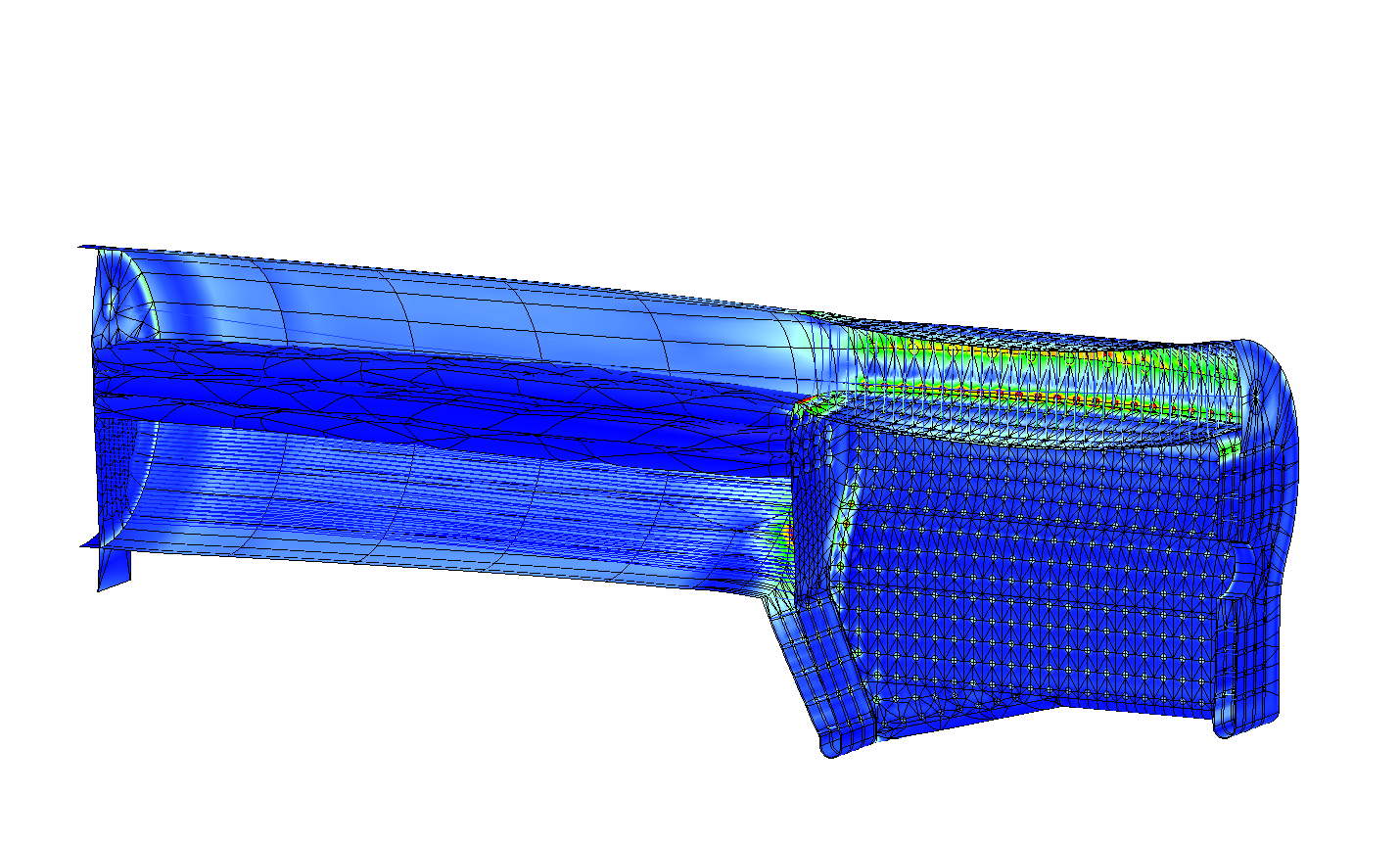

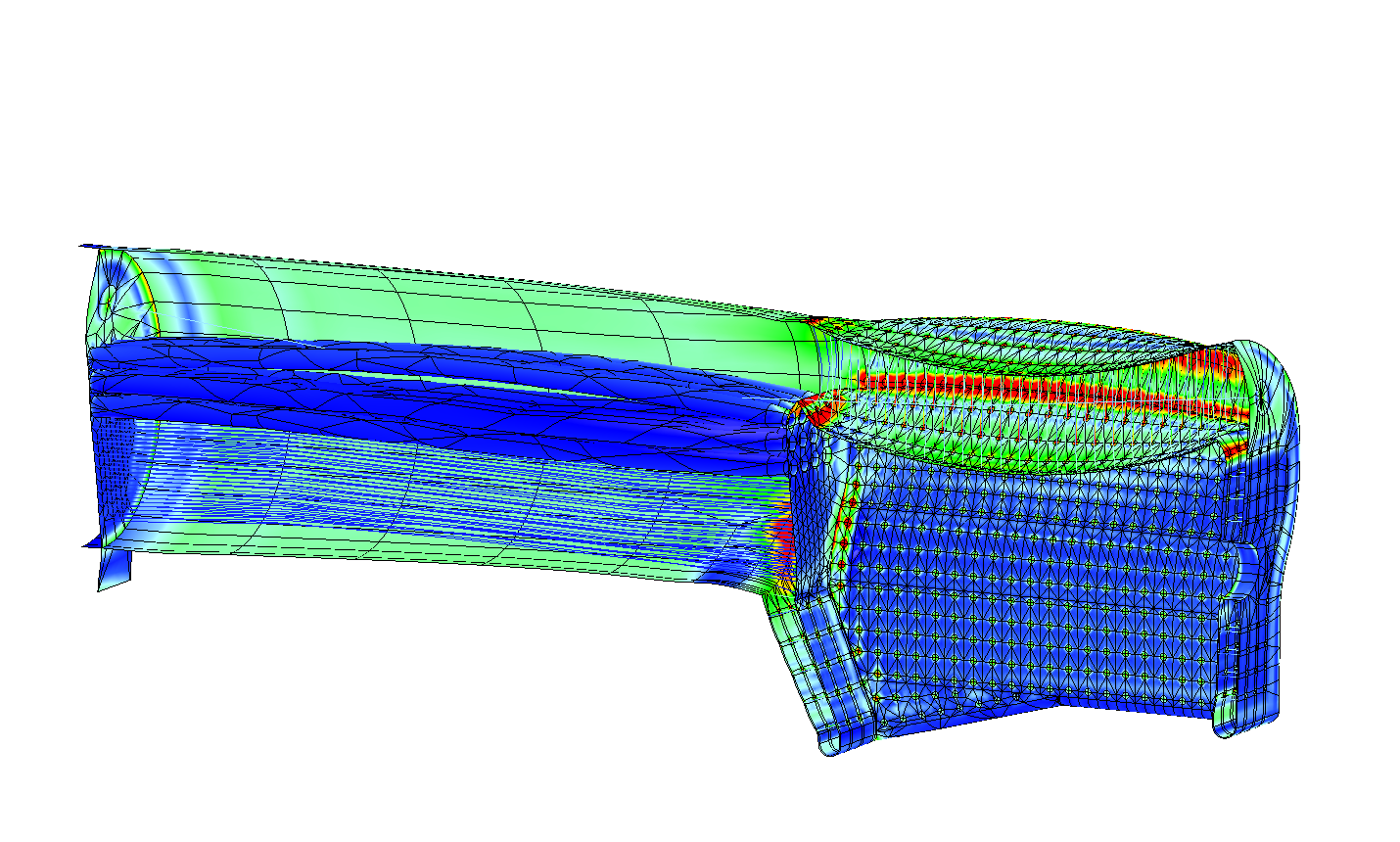

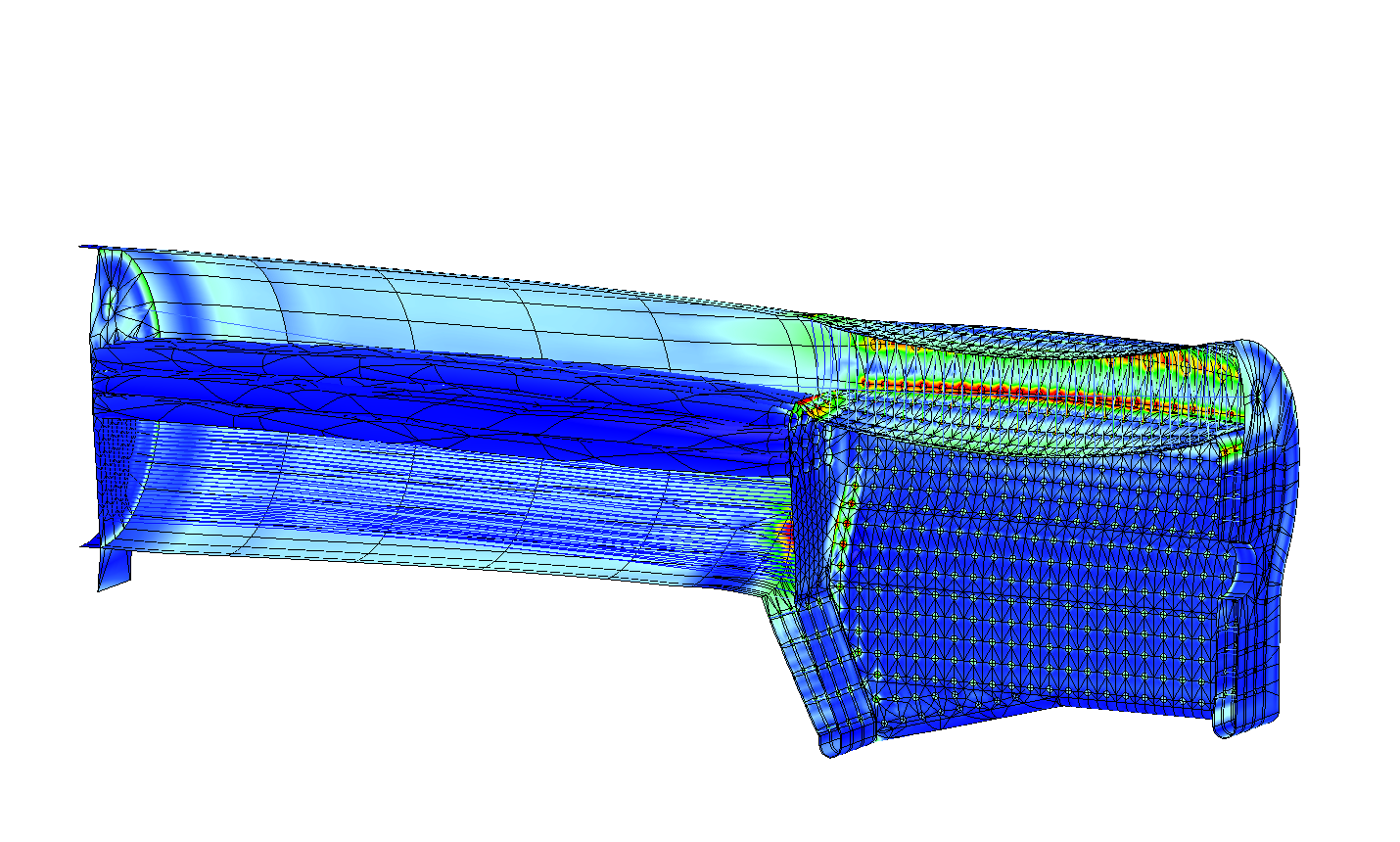

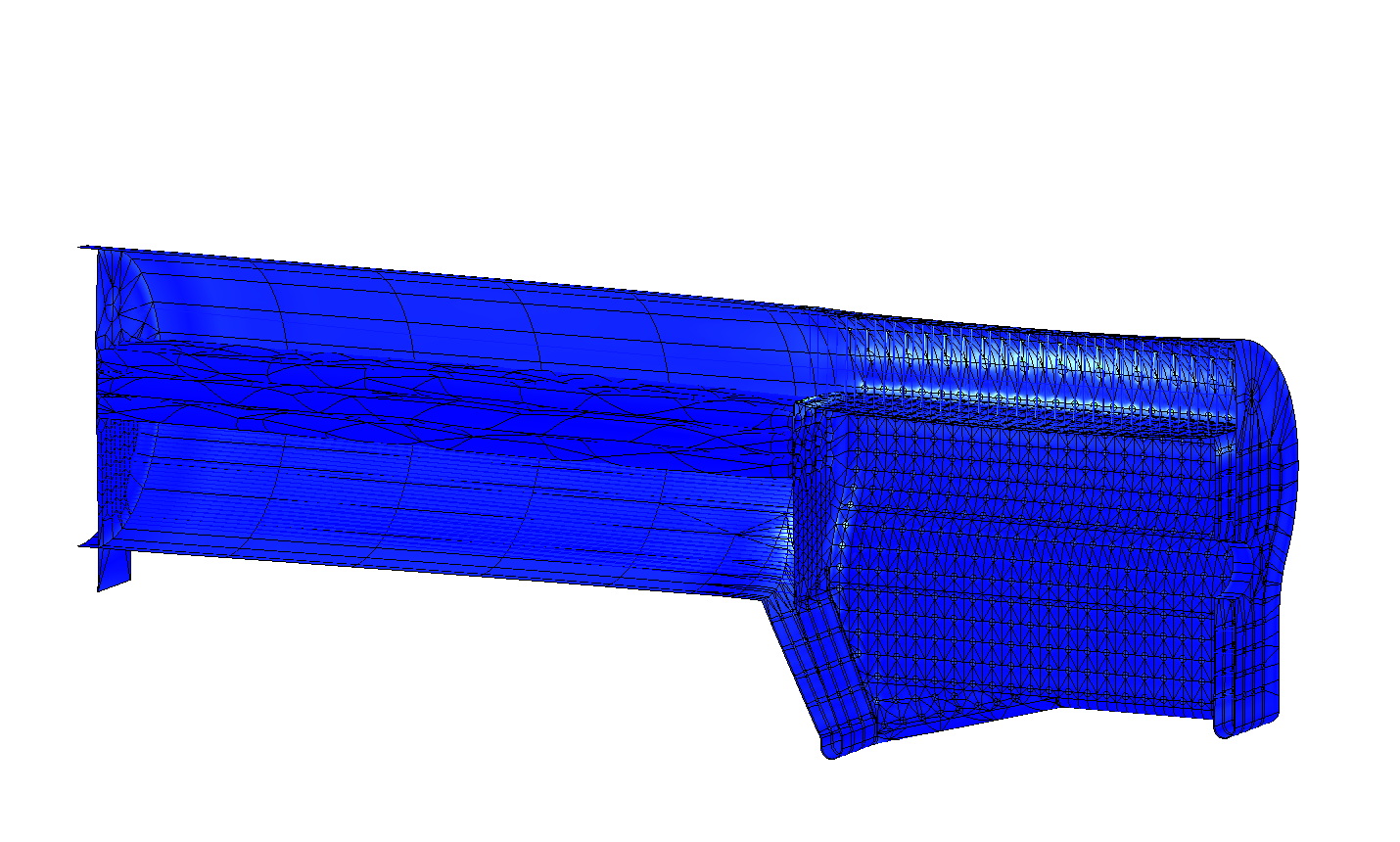

Animation is of a repeated cycle of pressurisation up to 1.628 N/mm2 and back down to zero again.
Actual maximum distortion is around 7mm.
To zoom in press the "Ctrl" key and the "+" key.
To zoom out press the "Ctrl" key and the "+" key.
